48V DC Brushless Vibration Motor 65W B59917
48V DC Brushless Vibration Motor 65W B59917
Brushless vibration motor is energy-efficient and efficient. The power saving rate is 40-60% of ordinary motors. It has a long life and 5 times longer life than ordinary motors.
Regulator positioning is accurate and rapid, analog quantity.

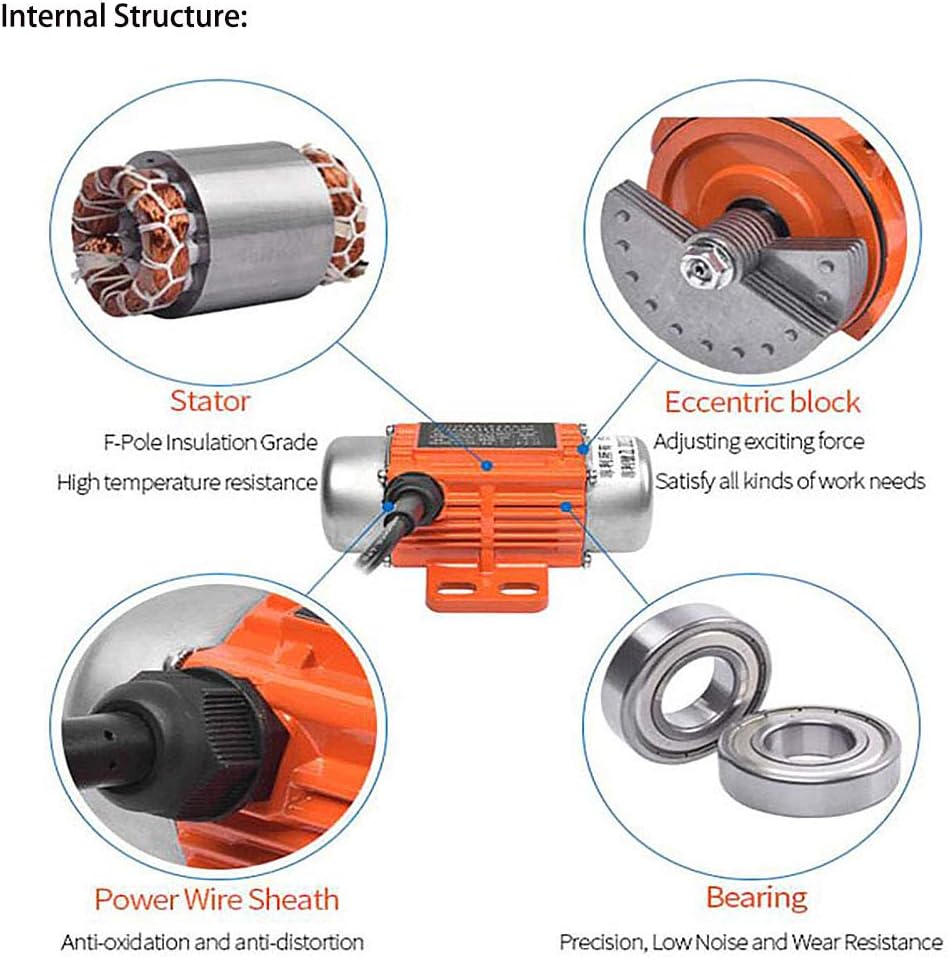

Highly light, resistant to deformation and oxidation, shell aluminum alloy corrosion protection. Can withstand long-term high-speed operation.

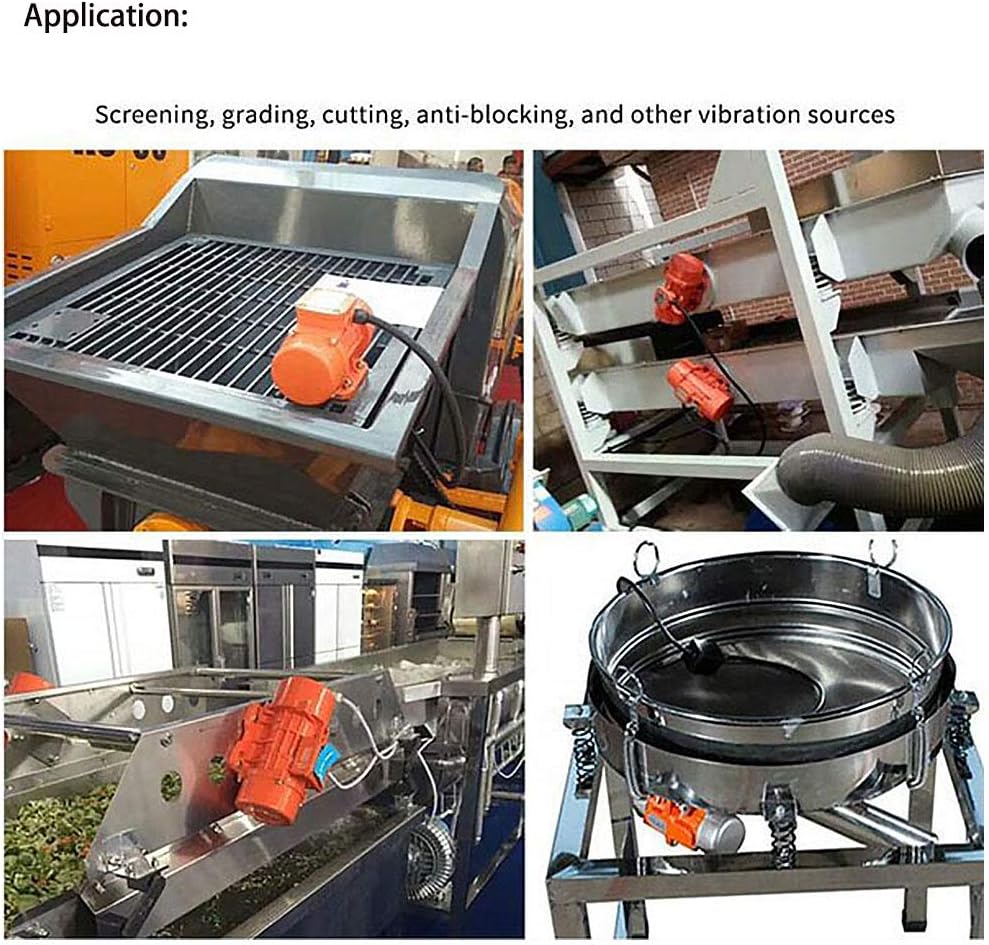

Widely applied in Mining, metallurgy, electricity, construction,coal, chemicals, medical equipment, food machinery, etc.
Special voltage and speed can be customized.If you are not sure about the size or have any issue about the product or service, please don't hesitate to email us. We will answer you winth 12h

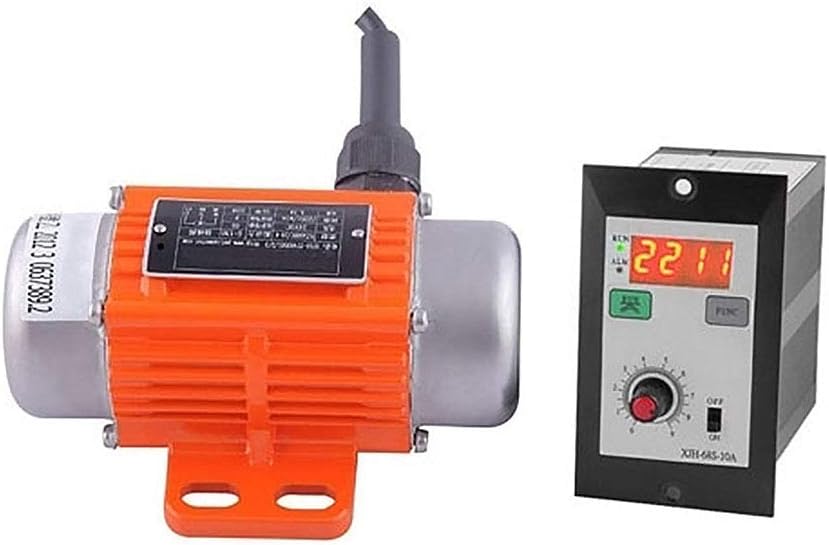

ATO 48V DC brushless micron vibration motor, 65W, with digital display speed controller, motor speed display and adjustment, 7200rpm rated speed. Small size, durable and low noise.
Small size 65W DC24V brushless vibtating motor is widely used in industrial, chemical industry and food machinery.
Special voltage, power and speed can be customized.
Specification:
Model Model ATO-65DCBVM-484
Voltage 48V
Rated Speed 7200rpm
Current 2A
Power 65W
Force 1.8 KN
Protection Rank IP65 (Dustproof and Waterproof)
Insulation Grade F (The Highest Heat Resistant Temperature is 155°)
Cooling Mode Natural Cooling (IC410)
Working System S1 (Continuous Duty)
Weight 1.8 kg

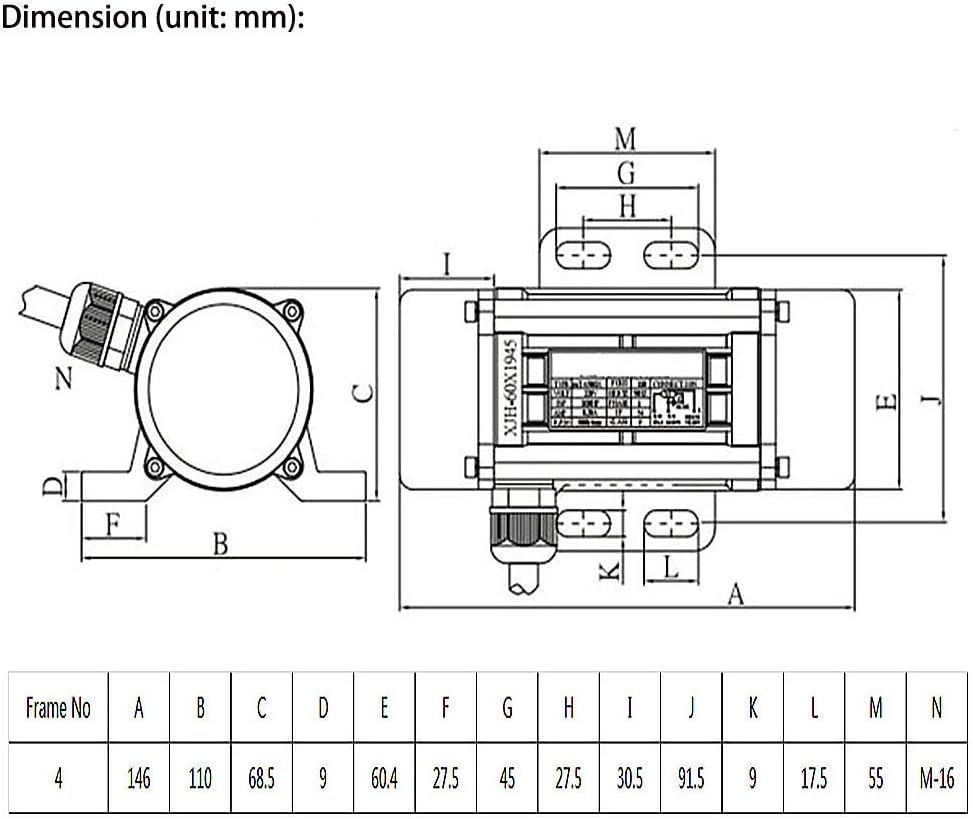

Dimensions 146mm x 110mm x 69mm
Frame No 4
Certificate CE
